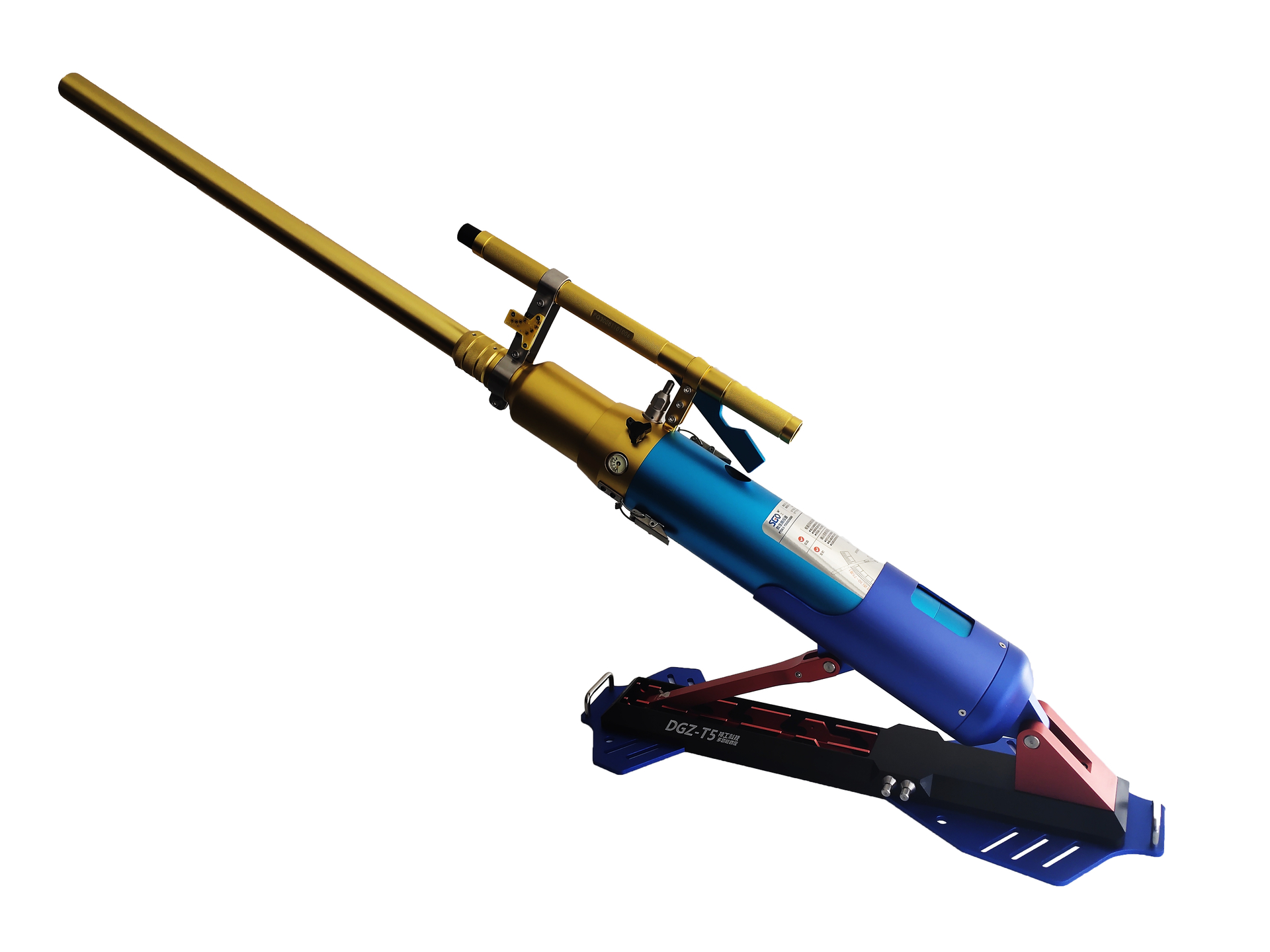

Long Distance Lifesaving Pneumatic Line Thrower

Long Distance Lifesaving Pneumatic Line Thrower

Performance description:

This product is a professional rescue for long distance rescue rope throwing machine, throwing distance up to 350 meters, can be used as ship-to-ship, ship-to-shore, high-rise buildings and mountain river throwing rope rescue and rescue drowning places.

Technical parameters:

(1) Use compressed air, working pressure 8.5MPa;

(2) ejection distance: land ejection distance ≥350 meters, water ejection automatic inflatable life buoy distance ≥250 meters;

(3) throwing rope specifications: diameter ≤3mm, land throwing rope tension ≥2000N; Water rope pulling force ≥6000N;

(4) Equipped with automatic safety pressure relief valve, cylinder pressure can be automatically relieved when the pressure is too high, to ensure personal and equipment safety;

(5) Equipped with manual pressure relief valve, convenient maintenance and testing in an emergency can manually adjust the cylinder pressure control throwing distance;

(6) Equipped with a gas cylinder rope retractor for filling rope, can use 6.8L empty breath bottle to fill rope, simple and convenient to fill warheads at the rescue site;

(7) Adjustable base design, multi-angle design, easy to adjust the launch Angle; The base adopts super stable system, which can adapt to various surface use;

(8) The main machine is equipped with a pressure gauge, which can conveniently observe the pressure of the projectile;

(9) The water in the water rescue bomb is automatically inflated into the life buoy within 5 seconds of entering the water, generating more than 8 kilograms of buoyancy;

(10) Aluminum alloy aviation packing box, strong waterproof and seismic, in a variety of circumstances to protect equipment, conducive to a variety of complex environment rescue work;

(11) Equipped with rope collection device, can quickly recover the rescue rope, improve the rescue time and efficiency;

(12) This product has obtained the test report of the National fire equipment Quality supervision and Inspection Center;
